油封螺杆真空泵特点：
低螺杆转速/Low Rotor Ratation Speed
●保证了DP系列真空泵是极静音的产品—产品更低噪音为69dB(A)—所以能够将真空泵安装在周围有操作人员的主设备旁边。保证了产品的高可靠性与长使用周期/Denair low pressure screw air compressor adopalt ensure DNA-P series vacuum pump is extremely quiet-Produc ts for the lowe st noise 69dB(A)-it can be installed next to the pump around the operator's main device,Ensuring high relibility and long life cycle of the product.ts.high efficient oil-air separation system.Ensuring that the products,of high reliability and long life cycle.oil content of the compressed air under 3 ppm.
通用马达/General Motor
●DP真空泵的耐用，高可靠性并配置了较高同服系数的电机的特点保证了产品的长寿命/DAN-P vacuum durable.high reliability and comfigured servo motor features high coe fficient of ensuring a long product life.
真空泵进气口直接安装的模块化调节阀/Vacuum Pump Air Inlet Dirctly Mounted Modular Valve
●使设备能够按照现实的实际需求调节产品表现/It enables the device to adjust according to the actual needs of the product preformance.
●减少了设备运行中的波动对系统的影响/Reduce the impact of fluctuations in the operation of the device on the system.
●通过减少产品的启/停次数，减少了产品的磨损并缩短了维护周期/By reducing the product starts/stops,re duced wear and shorten product maintenance cycle.
隔音外罩/Soundproof Enclosure
●将噪音水平降至更低69dB(A)，优化了产品外观/The noise levels to a minimum 69dB(A),Optimize the product appearance.
高效油分离器/Efficient Oil Separator
●滤芯极易替换，减少返流并优化产品性能/Filter easily replaced,reducing reflux and optimize.product performance.
●以更少的维护次数保证产品寿命/With minimal maintenance times to ensure product life.
●允许产品在接近大气压的气压范围工作，避免安装额外的附件/Allow product near atmospheric pressure range,acoid installing additional accessories.
可设定式油自动调温器/Oil Can Be Set Thermostats
●避免了冷凝水、特别是在特定的环境中，污染油箱/Avoiding condensation of water,particularly in a specific environment,pollution tank.
●针对潮湿应用环境优化油的循环减少冷凝水对机头的影响，提供持续表现/For wet application on the compressor element of condensate,provide continuous performance.
| 型号 |
功率 |
抽气速率 |
抽气速率 |
电压防护等级 |
传动方式 |
润滑油量 |
启动方式 |
外形尺寸 |
重量 |
空气出口管径 |
|---|---|---|---|---|---|---|---|---|---|---|
| DVP-4/2 | 4 | 2.2 | 132 | 380V/IP54 | 皮带 | 10 | ϒ−Δ | 950×950×1100 | 500 | DN50 |
| DVP-11/7 | 4 | 7.1 | 426 | 380V/IP54 | 联轴器传动 | 25 | 1450×950×1200 | 1000 | DN65 | |
| DVP-15/9 | 15 | 9.0 | 540 | 380V/IP54 | 25 | 2300×1300×1600 | 1200 | DN80 | ||
| DVP-18/12 | 18 | 12.0 | 720 | 380V/IP54 | 50 | 2300×1300×1600 | 1500 | DN80 | ||
| DVP-22/16 | 22 | 16.0 | 960 | 380V/IP54 | 50 | 2400×1400×1700 | 1700 | DN100 | ||
| DVP-30/18 | 30 | 18.0 | 1080 | 380V/IP54 | 50 | 2400×1400×1700 | 2000 | DN100 | ||
| DVP-37/26 | 37 | 26.0 | 1560 | 380V/IP54 | 80 | 2400×1400×1800 | 2500 | DN100 | ||
| DVP-55/40 | 55 | 40.0 | 2400 | 380V/IP54 | 100 | 2500×1800×2100 | 3500 | DN150 | ||
| DVP-75/49 | 75 | 49.0 | 2940 | 380V/IP54 | 120 | 2800×1800×2100 | 4000 | DN150 | ||
| DVP-90/59 | 90 | 59.0 | 3540 | 380V/IP54 | 140 | 2800×1800×2100 | 4200 | DN200 | ||
| DVP-110/80 | 110 | 80.0 | 4800 | 380V/IP54 | 160 | 3000×2000×2100 | 4500 | DN200 |

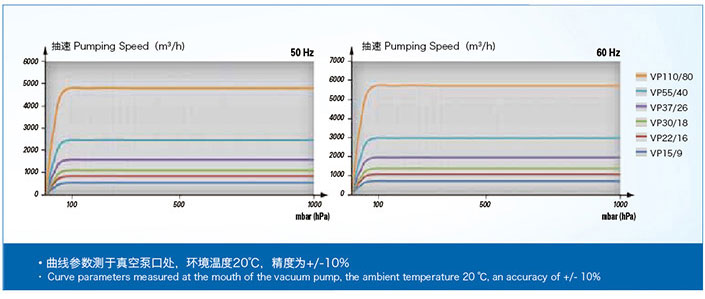

油封螺杆真空泵性能曲线
说明：
德耐尔对产品不断改进，保有设计变更权，如有更改，恕不另行通知
油封螺杆真空泵应用：
针对复杂应用场合的可靠真空/Reliable Vacuum For Complex Applications
●DP系列真空泵为针对印刷、电子、塑料、包装、木材加工、制瓶、制罐等类似行业复杂应用的更佳真空解决方案。
DP series vacuum pump is the best solution for vacuum printing, electronics, plastics, packaging, wood processing, bottles, cans and other similar industry complex application program.
